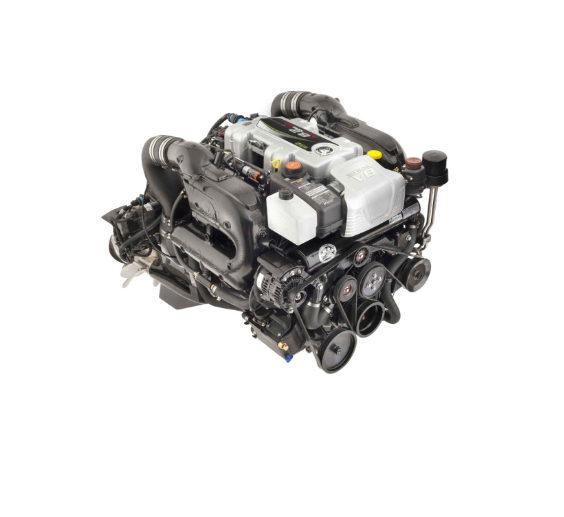

Mercruiser 8.2 L MAG HO 430 HP
BackMercruiser 8.2 L MAG HO 430 HP
Power Packed
Price POA
“The Mercury MerCruiser®, no replacement for displacement.” 8.2 L V-8 sterndrive engine is a masterpiece of powerful simplicity. It’s simple to drive. Simple to maintain. And simple to own. Yet, it delivers the benefits sought by boaters who settle for nothing but the best, including high torque and long-term durability and value through high displacement.
|
Attributes
Recommended Oil
|
Value
Mercury MerCruiser Full Synthetic 20 W-40W, NMMA FCW Rated
|
|
Water Drain System
|
Single Point Air Actuated
|
|
Cooling System
|
Closed Cooling, Long Life 5-Year, Anti-freeze, Brass Sea Water Pump
|
|
HP/kW
|
430 / 321
|
|
Full throttle RPM
|
4600-5000
|
|
Cylinder Configuration
|
V-8
|
|
Displacement (L)
|
8.2 / 502ci
|
|
Bore X Stroke (in/mm
|
4.47 x 4.00 / 113.5 x 101.6
|
|
Compression Ratio
|
8.75:1
|
|
Fuel/Ethanol Tolerance
|
87 Octane / up to 10% Ethanol
|
|
Fuel Delivery System
|
Gen III Cool Fuel
|
|
Fuel Induction System
|
High Inertia Induction System
|
|
Engine Control System
|
PCM 09 w/SmartCraft CAN Capability OBD-M Diagnostics & O2 Sensors
|
|
Ignition System
|
Distributorless Ignition w/Knock Control
|
|
Charging (Amp/Watt)
|
65 / 917 Alternator
|
|
Exhaust System
|
Tuned Runner Exhaust Manifolds w/316 Stainless Steel Tubular Dry Joint Elbows
|
|
Accessory Drive System
|
Serpentine Belt, Auto-Tensioner
|
|
Engine Guardian System
|
Low oil pressure, high coolant temperature, low seawater pressure, low voltage, overrev control, knock control, high exhaust manifold, temperature, low drive lube
|
|
Dimensions (LxWxH) in
|
35 x 33 x 24
|
|
Dimensions (LxWxH) mm
|
878 x 838 x 610
|
|
Weight w/Bravo One (lbs/kg)
|
1391 / 631
|
|
Weight w/Bravo Two (lbs/kg)
|
1404 / 637
|
|
Weight w/Bravo Three (lbs/kg)
|
1414 / 641
|
|
Full Closed Cooling
|
Standard
|
|
Digital Throttle & Shift
|
Optional
|
