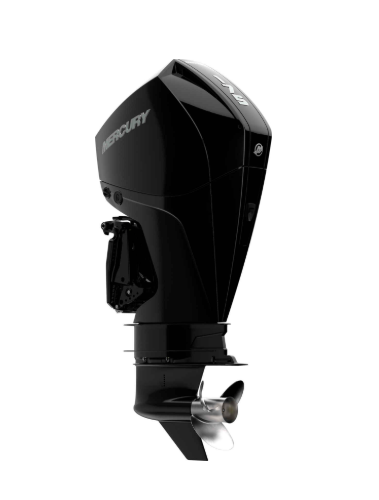

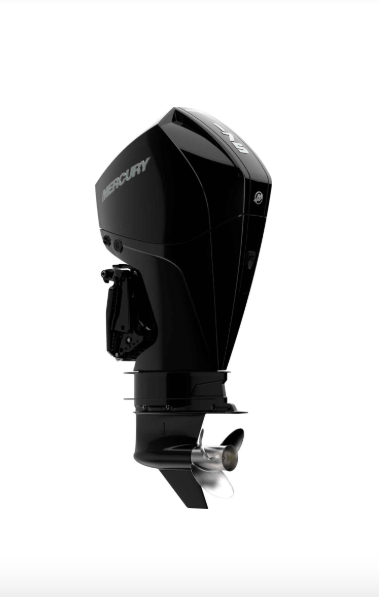

Mercury 175 HP V6
BackMercury 175 HP V6
Mercury 175 HP V6, 4-Stroke, Short Shaft/Long Shaft.
Price POA
The all-new V-6 Mercury FourStroke is high tech without high stress. -RELIABLE, DURABLE AND STRONG.
- Superior torque from high displacement V-6 powerhead.
- Lightest weight from maximum performance.
- Quicker acceleration from performance inspired, quad cam design.
- Maximum fuel efficiency from Advanced Range Optimization and closed-loop fuel control.
|
Attributes
HP/kW @ Prop
|
Value
175/168
|
|
Max RPM (WOT)
|
5000-5800
|
|
Cylinders / Configuration
|
V6 [64 degree] with 24-valve Dual Overhead Cam [DOHC]
|
|
Displacement (CID/Liters)
|
3.4L/209
|
|
Bore x Stroke (mm/in)
|
3.6 x 3.4 / 92 x 86
|
|
Induction System
|
Performance-Tuned Long-Runner Intake Manifold
|
|
Ignition
|
SmartCraft PCM 112 Digital Inductive
|
|
Fuel System
|
Electronic Fuel Injection [EFI] with ARO
|
|
Alternator Amp/Watt
|
85 amp / 1071 watt belt-driven [Idle Charge]
|
|
Midsection Design
|
Centralized Motor Mounts
|
|
Starting
|
SmartCraft Electric [turn-key] with SmartStart Protection
|
|
Gearcase / Ratio
|
4.8″ 1.85:1 [RH/LH]
|
|
Gear Shift
|
Electronically-Actuated Shifting
|
|
Controls
|
Mechanical Control with Digital Throttle and Shift [DTS]
|
|
Steering
|
Hydraulic [Optional] Power Steering Kit [Optional] Bit Tiller Handle Kit [Optional]
|
|
Mounting Centers
|
Minimum 26-inch (660 mm) Centers
|
|
Engine Protection System
|
SmartCraft Engine Guardian
|
|
Recommended Oil
|
NMMA Certified FCW SAE 10W-30
|
|
Oil Capacity
|
7.0 qts / 6.6 L
|
|
Fuel Requirements
|
Unleaded Regular 87 Octane Minimum [R+M/2] Or 91 RON 10% Ethanol Maximum
|
|
Dry Weight (lbs/kg)
|
473/213 *lightest model available.
|
|
Trim Range
|
20 degree (-6 to 14 degrees)
|
|
Tilt Range
|
20 degree (-6 to 14 degrees)
|
|
Shaft Length inches (mm)
|
20 (508) 25 (635)
|
|
Operator Warning System
|
SmartCraft Engine Guardian
|
|
Colors
|
Phantom Black
|
