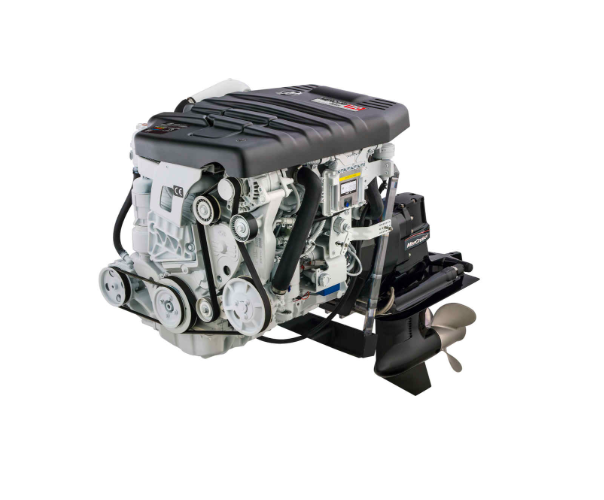

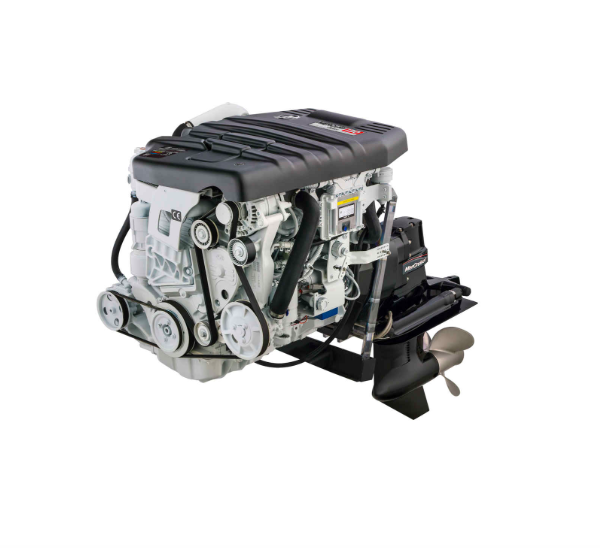

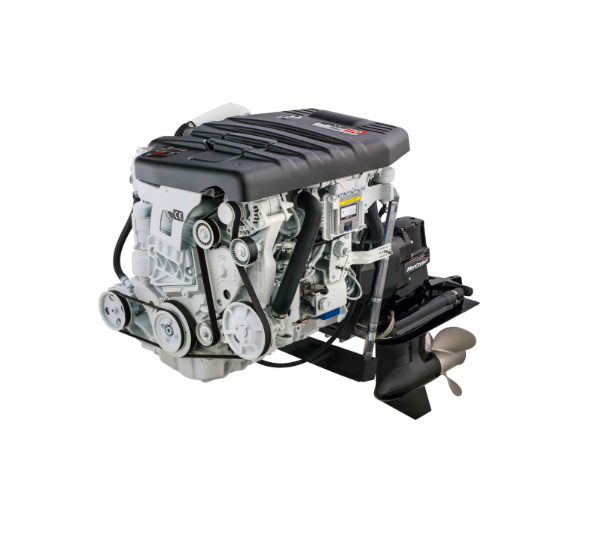

Mercury 2.0L 130, 150, 170 HP SD
BackMercury 2.0L 130, 150, 170 HP SD
Solid. Quiet. Dependable.
Price POA
The secret to Mercury 2.0 L Diesel’s smooth performance lies in its High Pressure Common Rail Injection system. This state- of-the-art fuel-delivery system makes Mercury Diesel engines significantly quieter at idle than our competitors’ engines, and an internal counterbalancing system ensures the engine runs significantly smoother.
130 HP:
|
Attributes
Bore x Stroke (mm/in)
|
Value
83 x 92 / 3.27 x 3.62
|
|
Turbo
|
Wastegate
|
|
Propulsion System
|
Inboard
|
|
HP/kW
|
130 / 96
|
|
Cylinder Configuration
|
Inline 4
|
|
Max RPM
|
4000
|
|
Max Torque
|
222 ft-lbs / 301 Nm @ 2600
|
|
Displacement
|
1.991 L / 121 ci
|
|
Compression Ratio
|
17.5
|
|
Fuel Consumption LPH @ Rated RPM
|
29.55 @ 4000
|
|
Dimension (L x W x H)
|
802 x 710 x 727 mm
|
|
Engine Weight (kg/lb)
|
250 / 551
|
|
Fuel Injection
|
High-PSI Common Rail
|
|
Cooling
|
Closed Cooling
|
|
Emission Certification
|
RCD/IMO 2/EPA Tier 2/BSO 2
|
|
Compatible w/ SmartCraft
|
Standard
|
|
Digital Throttle & Shift
|
N/A
|
|
Compatible w/ AXIUS Joystick Docking
|
N/A
|
150 HP:
|
Attributes
Bore x Stroke (mm/in)
|
Value
83 x 92 / 3.27 x 3.62
|
|
Turbo
|
Wastegate
|
|
Propulsion System
|
Inboard
|
|
HP/kW
|
150 / 110
|
|
Cylinder Configuration
|
Inline 4
|
|
Max RPM
|
4000
|
|
Max Torque
|
227 ft-lbs / 308 Nm @ 2600
|
|
Displacement
|
1.991 L / 121 ci
|
|
Compression Ratio
|
17.5
|
|
Fuel Consumption LPH @ Rated RPM
|
34.16 @ 4000
|
|
Dimension (L x W x H)
|
02 x 710 x 727 mm
|
|
Engine Weight (kg/lb)
|
250 / 551
|
|
Fuel Injection
|
Common Rail
|
|
Cooling
|
Closed Cooling
|
|
Emission Certification
|
RCD/IMO 2/EPA Tier 2/BSO 2
|
|
Compatible w/ SmartCraft
|
Standard
|
|
Digital Throttle & Shift
|
N/A
|
|
Compatible w/ AXIUS Joystick Docking
|
N/A
|
170 HP:
|
Attributes
Bore x Stroke (mm/in)
|
Value
83 x 92 / 3.27 x 3.62
|
|
Turbo
|
Wastegate
|
|
Propulsion System
|
Inboard
|
|
HP/kW
|
170 / 124
|
|
Cylinder Configuration
|
Inline 4
|
|
Max RPM
|
4000
|
|
Max Torque
|
229 ft-lbs / 310 Nm @ 2600
|
|
Displacement
|
1.991 L / 121 ci
|
|
Compression Ratio
|
17.5
|
|
Fuel Consumption LPH @ Rated RPM
|
37.36 @ 4000
|
|
Dimension (L x W x H)
|
02 x 710 x 727 mm
|
|
Engine Weight (kg/lb)
|
250 / 551
|
|
Fuel Injection
|
Common Rail
|
|
Cooling
|
Closed Cooling
|
|
Emission Certification
|
RCD/IMO 2/EPA Tier 2/BSO 2
|
|
Compatible w/ SmartCraft
|
Standard
|
|
Digital Throttle & Shift
|
Bravo
|
|
Compatible w/ AXIUS Joystick Docking
|
N/A
|
