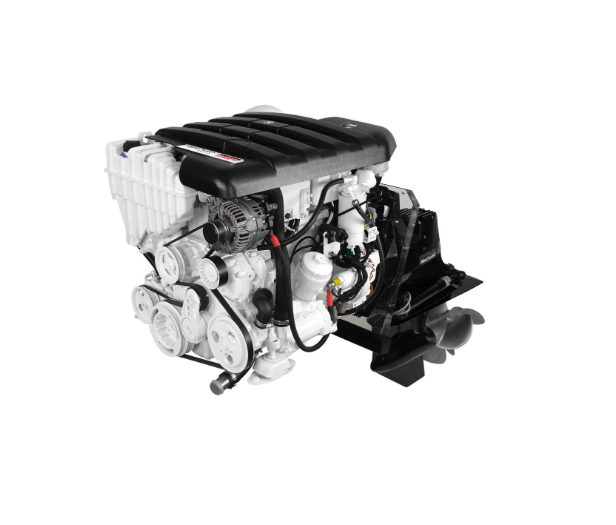

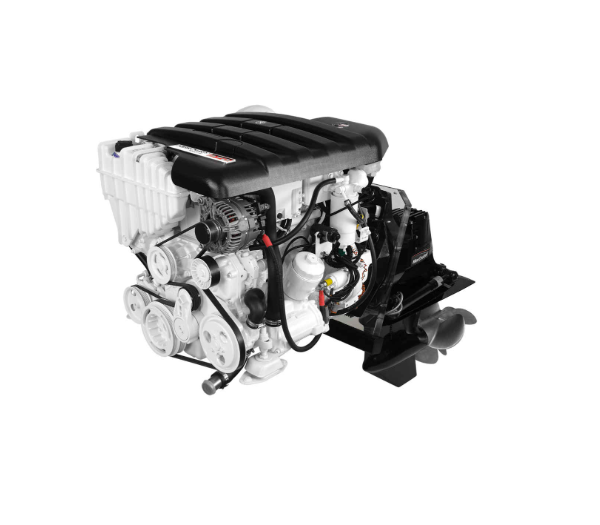

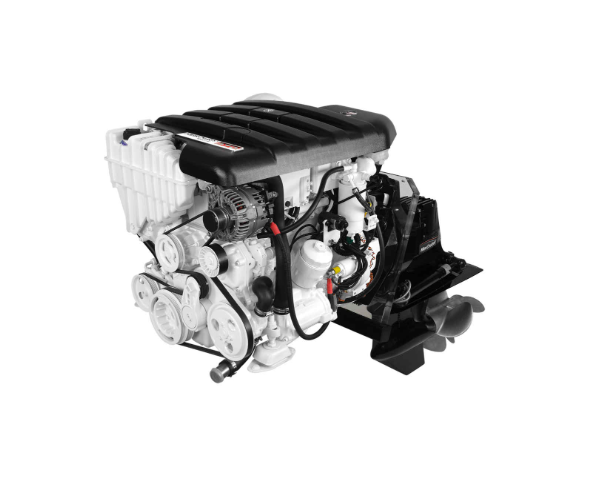

Mercury 2.8 L 220 HP SD
BackMercury 2.8 L 220 HP SD
Compact and Durable
The Mercury Diesel 2.8L at 220hp provides added power for mid- range vessels in either twin or single configurations. Featuring a high-pressure common rail fuel system and SmartCraft™ capability, this 4-cylinder powerhouse offers reduced noise, improved sociability and is a perfect fit for a wide variety of sterndrive and inboard applications.
|
Attributes
Bore x Stroke (mm/in)
|
Value
94 x 100 /
|
|
Turbo
|
Water Cooled
|
|
Propulsion System
|
Inboard
|
|
HP/kW
|
220 / 160
|
|
Cylinder Configuration
|
Inline 4
|
|
Max RPM
|
3800
|
|
Max Torque
|
358 ft-lb / 485 Nm @ 2600
|
|
Displacement
|
2.8 L
|
|
Fuel Consumption LPH @ Rated RPM
|
50.6 @ 3800
|
|
Dimension (L x W x H)
|
861 x 772 x 793 mm
|
|
Engine Weight (kg/lb)
|
360 / 794
|
|
Fuel Injection
|
High-PSI Common Rail
|
|
Cooling
|
Closed Cooling
|
|
Emission Certification
|
RCD/IMO 2/EPA Tier 2
|
|
Compatible w/ SmartCraft
|
Standard
|
|
Digital Throttle & Shift
|
Optional
|
|
Compatible w/ AXIUS Joystick Docking
|
Optional
|
