Mercury 20 HP EFI

Back

Mercury 20 HP EFI

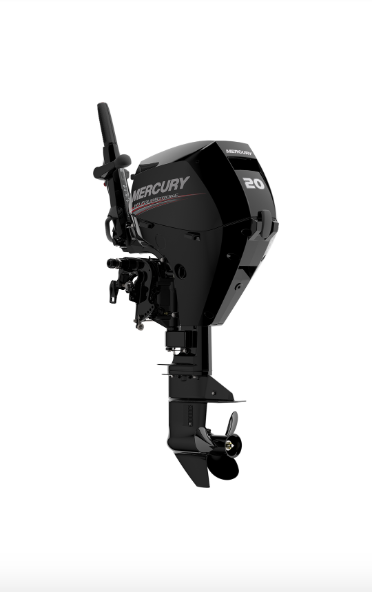

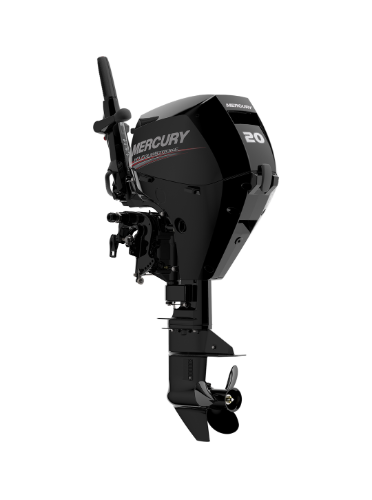

Mercury 20 HP EFI, 4-Stroke, Short Shaft/Long Shaft.

Price POA

The Ultimate Boating Experience Comes Standard on the new Mercury 20 hp & 15 hp outboards.

• EFI delivers fast, reliable starting and instant throttle response in all weather

• Superior torque provides greater acceleration and faster boat planing

• New and exclusive tiller handle has the lowest vibration and is adjustable for right- or left-handed operation for a more enjoyable driving experience

• Lightweight design improves performance, fuel efficiency and hull control

Attributes
HP/kW @ Prop
Value
20 / 14.7
Max RPM (WOT)
5700 – 6200
Induction System
2 valves per cylinder Single Overhead Cam (SOHC)
Fuel System
(EFI) Electronic Fuel Injection
Alternator Amp/Watt
12/145 (electric)
Starting
Manual or Electric
Gear Shift
F-N-R
Steering
Remote or Tiller
Recommended Oil
Mercury 4-Stroke Outboard Oil
Cooling System
Water-Cooled w/ thermostat
Cylinders
2 (in-line)
Displacement (CID/cc)
20.3 / 333
Bore X Stroke (in/mm)
2.40 x 2.24 / 61 x 57
Ignition System
CDI w/ electronic spark advance
Gear Ratio
2.15:1
Propeller
9.25” x 10”
Trim Positions
6 Position Trim Pin
Shallow Water Drive
Standard
Exhaust System
Through Prop
Fuel/Ethanol Tolerance
87 octane/up to 10% Ethanol
Remote Fuel Tank (gal/L)
Standard, 6.6 / 25
Operator Warning System
Engine Guardian
SmartCraft Technology
No
Shaft Length (in/mm)
15/381 20/508
Dry Weight (lbs/kg)*
99/45 *Lightest model available
