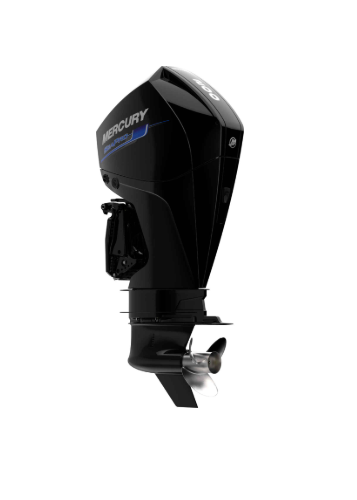

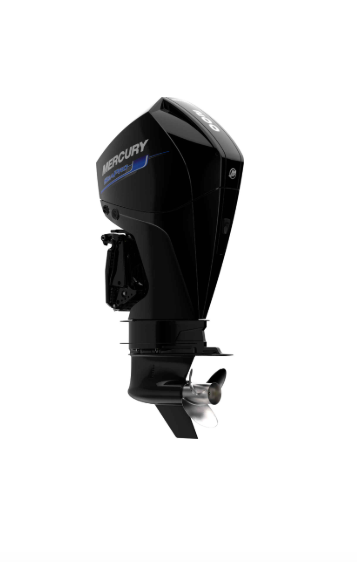

Mercury 200 HP SEAPRO V6
BackMercury 200 HP SEAPRO V6
Mercury 200 HP SEAPRO V6, 4-Stroke, Short Shaft/Long Shaft.
Price POA
The all new V-6 Mercury SeaPro bringing “tougher than tough” durability and “keep on running” reliability to the high-horsepower class. The SeaPro models are engineered from skeg to cowl to withstand the rigors of commercial duty cycles around the globe for ultimate durability for those who need it most.
|
Attributes
HP/kW @ Prop
|
Valu
200/149
|
|
Max RPM (WOT)
|
4600-5400
|
|
Cylinders / Configuration
|
V6 [64 degree] with 24-valve Dual Overhead Cam [DOHC]
|
|
Displacement (CID/Liters)
|
3.4L/209
|
|
Bore x Stroke (mm/in)
|
3.6 x 3.4 / 92 x 86
|
|
Induction System
|
Performance-Tuned Long-Runner Intake Manifold
|
|
Ignition
|
SmartCraft PCM 112 Digital Inductive
|
|
Fuel System
|
Electronic Fuel Injection [EFI] with Advanced Range Optimization ARO
|
|
Alternator Amp/Watt
|
85 amp / 1071 watt belt-driven with Idle Charge Management 25A (315W) @ 600RPM & 60A (756W) @ WOT
|
|
Midsection Design
|
CMS with Low-Vibration Centralized Motor Mounts
|
|
Starting
|
SmartCraft Electric [turn-key] with SmartStart Protection
|
|
Gearcase / Ratio
|
5.44″ 1.85:1 [RH/LH] with Torpedo Gear-lube Drain
|
|
Gear Shift
|
Electronically-Actuated Rotary Shifting
|
|
Controls
|
Mechanical Control with Electronically Actuated Shift / Throttle or Digital [DTS] Control with Electronically Actuated Throttle and Shift
|
|
Steering
|
Hydraulic [Standard on Hull] Power Steering Kit [Optional] Big Tiller Handle Kit [Optional]
|
|
Mounting Centers
|
Minimum 26-inch (660 mm) Centers
|
|
Engine Protection System
|
SmartCraft Engine Guardian
|
|
Recommended Oil
|
NMMA Certified FCW SAE 25W-40
|
|
Oil Capacity
|
7.0 qts / 6.6 L
|
|
Fuel Requirements
|
Unleaded Regular 87 Octane Minimum [R+M/2] Or 91 RON 10% Ethanol Maximum
|
|
Dry Weight (lbs/kg)
|
L = 483/220 *lightest model available. XL =492/223
|
|
Trim Range
|
20 degree (-6 to 14 degrees)
|
|
Tilt Range
|
73 degree (-6 to 67 degrees)
|
|
Shaft Length inches (mm)
|
L = 20 (508) XL = 25 (635) XXL – NA
|
