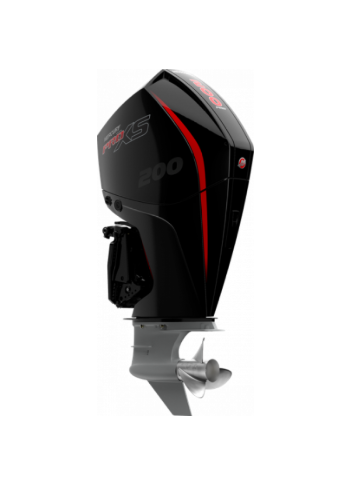

Mercury 200 HP V8 PRO XS


Mercury 200 HP V8 PRO XS

Mercury 200 HP V8 PRO XS, 4-Stroke, Short Shaft/Long Shaft.

Price POA

No outboard performs like Mercury Pro XS®,  The new V8 4.6L has the muscle to out-accelerate and out-run the competition

  • Superior acceleration from performance-inspired quad-cam design and Transient Spark Technology
  •  Optimized TorqueMaster gearcase (20″ Shaft models) for impressive performance
  • Exhilarating top speed with Pro XS performance calibration
  • Lightweight for maximum performance
  • Maximum fuel efficiency from Advanced Range Optimization and closed-loop fuel control.
  • Enhanced driving experience with Adaptive Speed Control
HP/kW @ Prop
Cylinders / Configuration
V8 [64 degree] with 32-valve Dual Overhead Cam [DOHC]
Displacement (CID/Liters)
Bore x Stroke (mm/in)
3.6 x 3.4 / 92 x 86
Induction System
Performance-Tuned Long-Runner Intake Manifold
SmartCraft PCM 112 Digital Inductive
Fuel System
Electronic Fuel Injection [EFI] with ARO
Alternator Amp/Watt
85 amp / 1071 watt belt-driven [Idle Charge]
Midsection Design
Centralized Motor Mounts
SmartCraft Electric [turn-key] with SmartStart Protection
Gearcase / Ratio
All TorqueMaster 1.75:1 (20″Shaft) All 544″ 1.75:1 RH (25″ Shaft) Opt. 200hp 4.8″ 1.85:1 (20″ Shaft)
Gear Shift
Electronically-Actuated Shifting
Mechanical Control with Digital Throttle and Shift [DTS]
Hydraulic [Optional] Power Steering Kit [Optional] Bit Tiller Handle Kit [Optional]
Mounting Centers
Minimum 26-inch (660 mm) Centers
Engine Protection System
SmartCraft Engine Guardian
Recommended Oil
NMMA Certified FCW SAE 10W-30
Oil Capacity
7.0 qts / 6.6 L
Fuel Requirements
Unleaded Regular 87 Octane Minimum [R+M/2] Or 91 RON 10% Ethanol Maximum
Dry Weight (lbs/kg)
L=505/229 XL=515/234
Trim Range
20 degree (-6 to 14 degrees)
Tilt Range
73 degree (-6 to 67 degrees)
Shaft Length inches (mm)
20 (508) 25 (635)
Operator Warning System
SmartCraft Engine Guardian
