Mercury 3.5 HP
BackMercury 3.5 HP

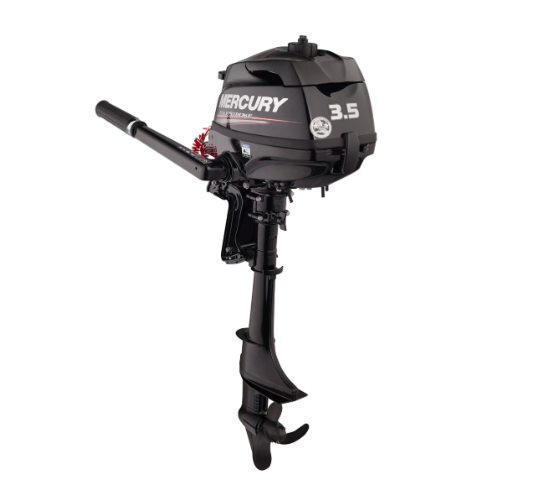

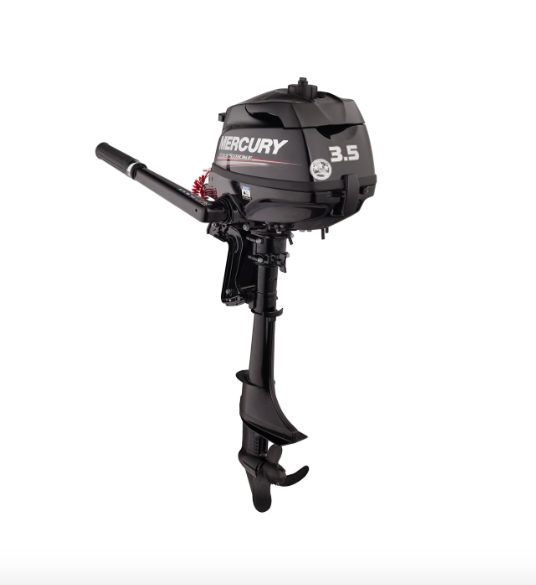

Mercury 3.5 HP, 4-Stroke, Short Shaft/Long Shaft.
Price POA
Popular and in use around the world, the portable Mercury 2.5 & 3.5 hp FourStroke outboards deliver reliable, lightweight power for tenders and skiffs. Manufactured to the same high standards of corrosion resistance as larger Mercury models, these outboards are engineered for easy starting and quiet operation.
|
Attributes
HP/kW @ Prop
|
Value
3.5 / 2.6
|
|
Max RPM (WOT)
|
5000 – 6000
|
|
Induction System
|
2-valve Push Rod (OHV)
|
|
Fuel System
|
Carbureted
|
|
Alternator Amp/Watt
|
NA
|
|
Starting
|
Manual
|
|
Gear Shift
|
F-N
|
|
Steering
|
Tiller w/360 degree turning
|
|
Recommended Oil
|
Mercury 4-Stroke Outboard Oil
|
|
Cooling System
|
Water-Cooled w/ thermostat
|
|
Cylinders
|
1
|
|
Displacement (CID/cc)
|
5.2 / 85
|
|
Bore X Stroke (in/mm)
|
2.16 x 1.42 / 55 x 36
|
|
Ignition System
|
CDI w/ electronic spark advance
|
|
Gear Ratio
|
2.15:1
|
|
Propeller
|
7.375” x 6”
|
|
Trim Positions
|
4
|
|
Shallow Water Drive
|
NA
|
|
Exhaust System
|
Above Prop
|
|
Fuel/Ethanol Tolerance
|
87 octane/up to 10% Ethanol
|
|
Integral Fuel Tank (gal/L)
|
0.3 / 0.95
|
|
Operator Warning System
|
Over-rev
|
|
SmartCraft Technology
|
No
|
|
Shaft Length (in/mm)
|
15/381 20/508
|
|
Dry Weight (lbs/kg)*
|
38/17 *Lightest model available
|
