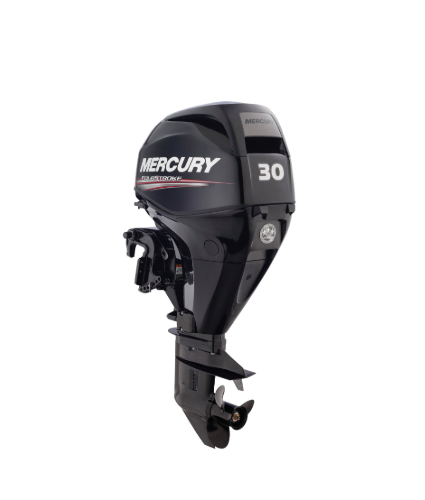

Mercury 30 HP, 4-Stroke, Short Shaft/Long Shaft.
Price POA
The generous displacement of the Mercury Marine 25 & 30hp FourStroke outboards delivers a boost of reliable performance. The exclusive Mercury multifunction tiller handle enables one-hand control of shifting, stopping, tilting, steering and throttle control with friction adjustment.
|
Attributes
HP/kW @ Prop
|
Value
30 / 22.4
|
|
Max RPM (WOT)
|
5250 – 6250
|
|
Induction System
|
2 valves per cylinder Single Overhead Cam (SOHC)
|
|
Fuel System
|
Electronic Fuel Injection (EFI)
|
|
Alternator Amp/Watt
|
15 / 186
|
|
Starting
|
Manual or Electric
|
|
Gear Shift
|
F-N-R
|
|
Steering
|
Remote or Tiller
|
|
Recommended Oil
|
Mercury 4-Stroke Outboard Oil
|
|
Cooling System
|
Water-Cooled w/ thermostat
|
|
Cylinders
|
3 (in-line)
|
|
Displacement (CID/cc)
|
32.1 / 526
|
|
Bore X Stroke (in/mm)
|
2.40 x 2.36 / 61 x 60
|
|
Ignition System
|
CDI w/ electronic spark advance
|
|
Gear Ratio
|
1.92:1
|
|
Propeller
|
Consult Dealer Propeller Guide
|
|
Trim System
|
Gas Assist or Power Trim & Tilt
|
|
Shallow Water Drive
|
NA
|
|
Exhaust System
|
Through Prop
|
|
Fuel/Ethanol Tolerance
|
87 octane/up to 10% Ethanol
|
|
Remote Fuel Tank (gal/L)
|
Standard, 6.6 / 25
|
|
Operator Warning System
|
Low Oil Pressure, Over-rev Overheat, Sensor Failure
|
|
SmartCraft Technology
|
No
|
|
Shaft Length (in/mm)
|
15/381 20/508
|
|
Dry Weight (lbs/kg)*
|
172/78 *Lightest model available
|
