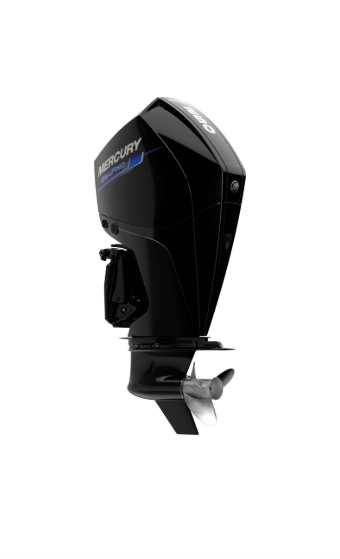

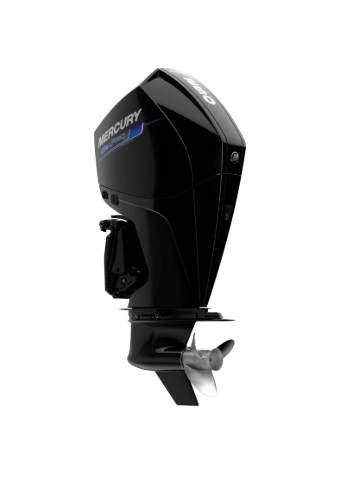

Mercury 300 HP SEAPRO V8 CMS, 4-Stroke, Short Shaft/Long Shaft.
Price POA
The all-new SeaPro V-8 Mercury FourStroke outboards bring more of everything to the job MORE DISPLACEMENT, MORE POWER, MORE EFFICIENCY and MORE DURABILITY.
- Engineered for maximum Durability and Reliability
- High-displacement V-8 4.6L a powerhead delivers loads of torque at a lower rpm with less stress on the engine
- Exceptionally lightweight design and Advanced Range Optimization maximize Fuel Economy at cruise
- Easy and Intuitive to Maintain
- Industry-exclusive battery-management technology with ample charging output.
Guaranteed to do its job, so you can do Yours.
|
Attributes
HP/kW @ Prop
|
Value
300/168
|
|
Max RPM (WOT)
|
4800-5600
|
|
Cylinders / Configuration
|
V8 [64 degree] with 32-valve Dual Overhead Cam [DOHC]
|
|
Displacement (CID/Liters)
|
4.6L/279
|
|
Bore x Stroke (mm/in)
|
3.6 x 3.4 / 92 x 86
|
|
Induction System
|
Performance-Tuned Long-Runner Intake Manifold
|
|
Ignition
|
SmartCraft PCM 112 Digital Inductive
|
|
Fuel System
|
Electronic Fuel Injection [EFI] with ARO
|
|
Alternator Amp/Watt
|
85 amp / 1071 watt belt-driven [Idle Charge]
|
|
Midsection Design
|
Centralized Motor Mounts
|
|
Starting
|
SmartCraft Electric [turn-key] with SmartStart Protection
|
|
Gearcase / Ratio
|
544″ 1.75:1 [RH/LH]
|
|
Gear Shift
|
Electronically-Actuated Shifting
|
|
Controls
|
Mechanical Control with Digital Throttle and Shift [DTS]
|
|
Steering
|
Hydraulic [Optional] Power Steering Kit [Optional] Bit Tiller Handle Kit [Optional]
|
|
Mounting Centers
|
Minimum 26-inch (660 mm) Centers
|
|
Engine Protection System
|
SmartCraft Engine Guardian
|
|
Recommended Oil
|
NMMA Certified FCW SAE 25W-40
|
|
Oil Capacity
|
7.0 qts / 6.6 L
|
|
Fuel Requirements
|
Unleaded Regular 87 Octane Minimum [R+M/2] Or 91 RON 10% Ethanol Maximum
|
|
Dry Weight (lbs/kg)
|
527/239 *lightest model available.
|
|
Trim Range
|
20 degree (-6 to 14 degrees)
|
|
Tilt Range
|
73 degree (-6 to 67 degrees)
|
|
Shaft Length inches (mm)
|
20 (508) 25 (635) 30 (762)
|
|
Operator Warning System
|
SmartCraft Engine Guardian
|
|
Colors
|
Phantom Black
|
