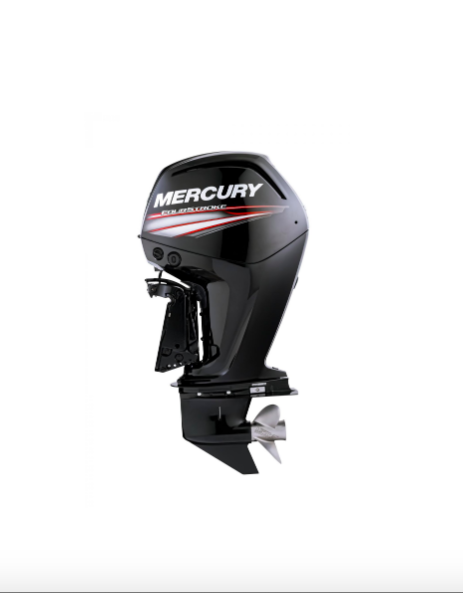

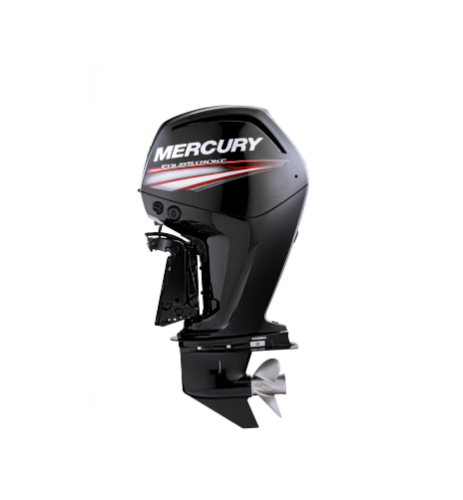

Mercury 90 HP CT
BackMercury 90 HP CT
Mercury 90 HP CT, 4-Stroke, Short Shaft/Long Shaft.
Price POA
Mercury’s “Command Thrust” gearcase design an industry first, takes the concept of using a larger gearcase on a smaller base powerhead to the 90 & 115 hp class. Command Thrust’s low 2.38:1 gear ratio coupled to a robust 2.1-litre displacement power plant provides the quickest acceleration, best mid-range fuel economy, with the smoothest overall operation and sound quality. For dual engine efficiency on saltwater boats. Counter Rotation is available in the 115 hp CXL model.
Attributes
HP/kW @ Prop
|
Value
90 / 67
|
Max RPM (WOT)
|
5000- 6000
|
Induction System
|
Performance-Tuned Scroll Intake Manifold
|
Fuel System
|
SmartCraft ECM Digital Inductive
|
Alternator Amp/Watt
|
35 amp / 750 watt Stator (w/Water-Cooled Voltage Regulator)
|
Starting
|
SmartStart Electric (Turn-Key)
|
Gear Shift
|
Mechanical F-N-R
|
Steering
|
Mechanical / Hydraulic / Big Tiller
|
Recommended Oil
|
Mercury 4-Stroke Outboard Oil
|
Cooling System
|
Water-Cooled w/ thermostat
|
Cylinders
|
4 (in-line) 8 Valve SOHC
|
Displacement (CID/cc)
|
126 / 2061
|
Bore X Stroke (in/mm)
|
3.5 x 3.2 / 90 x 81
|
Ignition System
|
SmartCraft ECM Digital Inductive
|
Gear Ratio
|
CT 2.38:1
|
Propeller
|
Consult Dealer Propeller Guide
|
Trim System
|
SmartCraft Programmable
|
Exhaust System
|
Through Prop
|
Fuel/Ethanol Tolerance
|
87 Octane / up to 10% Ethanol
|
Remote Fuel Tank (gal/L)
|
Optional
|
Operator Warning System
|
SmartCraft Engine Guardian
|
SmartCraft Technology
|
Yes
|
Shaft Length (in/mm)
|
20/508 25/635
|
Dry Weight (lbs/kg)*
|
364/165 *Lightest model available
|
Counter Rotation CXL
|
N/A
|
